High Thermal Efficiency Oil Fired Steam Generator , Automatic Steam Boiler

Taikang Yinyu Boiler Manufacturing Co., Ltd

High Thermal Efficiency Oil Fired Steam Generator , Automatic Steam Boiler

Brand Name : Yinyu

Model Number : WNS

Certification : ISO,BV

Place of Origin : Henan China

MOQ : 1

Price : $5,000.00-$10,000.00

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Qty/per month

Delivery Time : 7-30 work days

Packaging Details : Loose package

Raw Material : GB/T 3087-2008

Manufacturer : Yes

Design efficiency : 90%-94%

Type : Nature circulation

Warranty : 1 year,Lifetime maintain commitment

Structure : Fire tube

Output : Steam

Style : Vertical/Horizontal

Contact Now

High efficiency Environmental Full Automatic Oil Fired Steam Boiler

Fuel and gas boiler thermal efficiency of more than 95%, structural performance in the world's leading level, many environmental protection countries set boiler emission standards high requirements in the region, environmental protection and energy conservation.

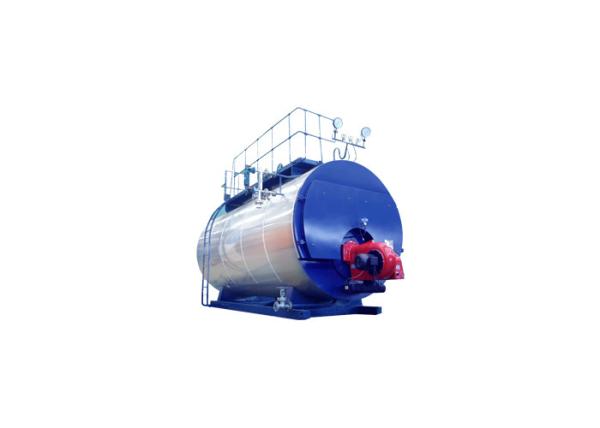

High Thermal Efficiency Oil Fired Steam Generator , Automatic Steam Boiler

Our service

Pre-sale service:
We help customer choose the best boiler model according to different requirements of various industry. Before delivery we will provide foundation drawing, layout drawing, boiler room layout, etc.
In-sale service:
We keep 24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product.
After-sale service:
1.provide full range of original spare parts.
2.Engineers abroad installation and commissioning service is available.
3.Our engineers will held a training for boiler workers to ensure the safe operation.
4.Free maintenance and repair for one year and lifelong service.

Part of product parameter

WNS2-1.25-YQ

NO; Name Unit Number Description
1 Rated evaporation t/h 2
2 Rated working power Mpa 1.25
3 Rated outlet ℃ 193
4 Design efficiency

92.6(Oil)
92.46(Gas)

5 Boiler heat efficiency More than 98%
6 Design fuels / Light oil,Gas
7 Fuels LHV MJ/kg 42.917(Oil)
MJ/Nm3 35.438(Gas)
8 Consumption of fuels kg/h 137.9(Oil)
Nm³/h 167.325(Gas)
9 Radiation heating area 8.527
Convection heating area 41.838
GGH heating area 23.195
10 Fume temperature 137.863(Oil)
134.28 (Gas)
11 Fume temperature 60-80
12 Excess air coefficient / 1.15
13 Volume m3 5
14 Bulk weight kg 9700
15 Bulk size mm 4531×2150×2544
16 Chimney mm Φ500×10000
17 Total power consumption KW Oil:13,Gas:11
18 Combustion model / Micro positive pressure Chamber combustion
19 Boiler structure feature(Three-pass structure) Horizontal-type chamber combustion
20 Control way Full automation/Manual
21 Ignition way High-tension/Electrode

WNS4-1.25-YQ

NO; Name Unit Number Description
1 Rated evaporation t/h 4
2 Rated working power Mpa 1.25
3 Rated outlet ℃ 194
4 Design efficiency

92.06(Oil)
92.17(Gas)

5 Boiler heat efficiency More than 98%
6 Design fuels / Light oil,Gas
7 Fuels LHV MJ/kg 42.917(Oil)
MJ/Nm3 35.438(Gas)
8 Consumption of fuels kg/h 275.8(Oil)
Nm³/h 334.65(Gas)
9 Radiation heating area 10.955
Convection heating area 83.887
GGH heating area 21.488
10 Fume temperature 140.6(Oil)
137.75 (Gas)
11 Fume temperature 60-80
12 Excess air coefficient / 1.15
13 Volume m3 5
14 Bulk weight kg 8000
15 Bulk size mm 4300×1900×2400
16 Chimney mm Φ400×10000
17 Combustion model / Micro positive pressure Chamber combustion
18 Boiler structure feature(Three-pass structure) Horizontal-type chamber combustion
19 Control way Full automation/Manual
20 Ignition way High-tension/Electrode

Etc
